N450 Series Thermostatic Steam Traps


Sale price$0.00

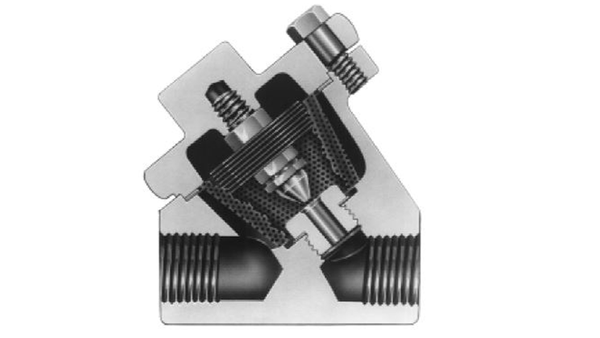

A steam trap is a mechanical valve which discharges condensate, undesirable air and non-condensibles from a system while trapping or holding in, steam. Thermostatic steam traps operate in direct response to the temperature within the trap. N450 Series steam trap is a balanced pressure design with stainless steel welded actuator capable of discharging condensate within 10°F / -12°C of saturated temperature. For greater sensitivity, SLR orifice and sterilizer trim are available to allow condensate evacuation at or near saturated temperatures. If subcooling of condensate is desired, alternate thermostatic actuator is available to allow condensate evacuation at or near 40°F/ 4.4°C below saturated temperatures. Thermostatic actuator has a conical valve lapped in matched sets with the seat ring assuring tight shut off. A minimum of three orifice sizes is available allowing for custom capacity sizing. Trap is forged carbon steel-bodied suitable for pressures through 450 psig / 31 bar and available in NPS 1/2 and 3/4 / DN 15 and 20 in NPT end connection.


    • Easy to Install
    • Low initial cost
    • High efficiency–maximum elimination of air and non-condensibles
    • One moving part. Stainless Steel, fail open, welded actuator for maximum corrosion, thermal and hydraulic shock resistance
    • Long life. Lapped as a matched set for water tight seal
    • Can be inspected and serviced without breaking pipe connections
    • Self draining when installed vertically
    • Because the trap closes at saturated steam temperature, superheated steam cannot reach trap
    • Efficient steam service air vent when equipped with ISO filled Actuator and installed in air vent location
    • Integral Stainless Steel Strainer helps prevent debris depositing on valve and seat
    • Options are  Skirted Seat, SLR Orifice, ISO Filled Actuator, Internal SS Strainer (std. on N451), Sterilizer Trim and Socketweld
    • Maximum Operating Pressure† 450 psig (31 barg)
    • Maximum Operating Temperature 600°F (316°C)
    • Body is ASTM A105 Forged Steel
    • Cover is ASTM A351 Grade CF8 (304)
    • Cover Gasket is 304 SS Spiral Wound w/Graphite Fill
    • Strainer is 033 Perf. 304 Stainless Steel
    • Valve & Seat is Hardened 416 Stainless Steel
    • Connections is 1/2" or 3/4" NPT or Socketweld
