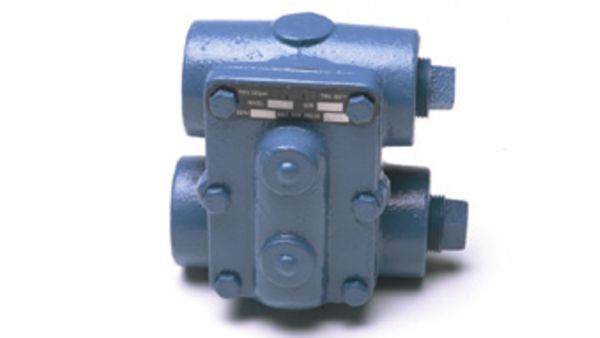

FTN Series Float & Thermostatic Traps


Sale price$0.00


Steam trap shall be of float and thermostatic design. Float shall actuate the valve via a hinged lever and linkage. Air vent shall be of balanced pressure design with stainless steel welded encapsulated bellows capable of discharging air and noncondensable gases continuously within 15°F of saturated temperature. Traps through 1-1/4" shall employ "H" pattern connections to accommodate multiple piping configurations. Trap shall be cast iron bodied suitable for pressures to 125 psi and available in 3/4" through 2" NPT.


    • Available Sizes: NPS 1/4, 1, 1-1/4, 1-1/2 and 2 / DN 25, 32, 40 and 50
    • Maximum Temperature 450°F / 232°C
    • Maximum Operating Pressure 125 psig / 8.62 bar
    • Maximum Allowable Pressure 250 psig / 17.2 bar
