B Series Steam Traps


Sale price$0.00

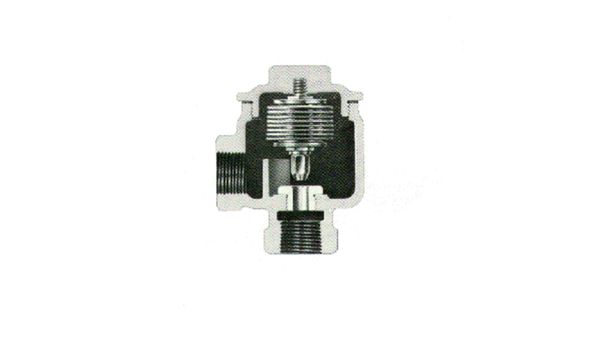

B Series Steam trap shall be balanced pressure design with stainless steel welded actuator capable of discharging condensate within 10°F of saturated temperature. Where greater sensitivity is required or protection from flash steam locking, a SLR orifice will be available to allow condensate and flash steam evacuation at or near saturated temperatures. Thermostatic actuator shall employ a conical valve lapped in matched sets with the seat ring assuring tight shut off. Trap shall be cast iron or cast steel bodied suitable for pressures to 250 psig and available in 1/2" through 2" NPT.


    • Renew trap in-line with factory packaged precision matched internal parts, replacement kits
    • Requires minimum space while providing condensate capacities equal to larger mechanical traps
    • Maximum air handling capability. Immediate response to changing pressure and condensate loads. No adjustment necessary
    • Increased when installed on side with cover perpendicular to ground
    • One moving part, stainless steel, fail open or closed, welded actuator provides maximum corrosion, thermal and hydraulic shock resistance and sensitivity
    • Body Size are NPS 1/2, 3/4, 1, 1-1/4, 1-1/2 and 2 / DN 15, 20, 25, 32, 40 and 50
    • End Connection is NPT
    • Maximum Operating Pressure 250 psig / 17.2 bar g
    • Maximum Allowable Pressure 250 psig / 17.2 bar g
    • Maximum Operating Temperature 400°F / 204°C
    • Maximum Allowable Temperature 400°F / 204°C
    • Body and Cover is Cast Iron
    • Actuator is  Welded Stainless Steel
    • Cover Gasket is Graphite
    • Valve and Seat is Hardened 416 Stainless Steel
    • Options are SLR Orifice and High capacity orifice
